How do I create a firewall rule to allow/disallow use of a certain application in ESET Cyber Security Pro?Issue

  • An application (for example iTunes) is not working or having connectivity issues after installing ESET Cyber Security Pro
  • You want to configure the ESET firewall to block incoming or outgoing Internet communications for a specific application

Details

Solution

  1. Allow an application
  2. Block an application

For example purposes!

The examples in sections I and II demonstrate how to create a rule to allow all online communications for iTunes or deny all online communications for iTunes. Creating these two rules in an actual network environment would cause them to cancel each other out.

I.Create a rule to allow an application

  1. Open ESET Cyber Security Pro.How do I open my ESET product?

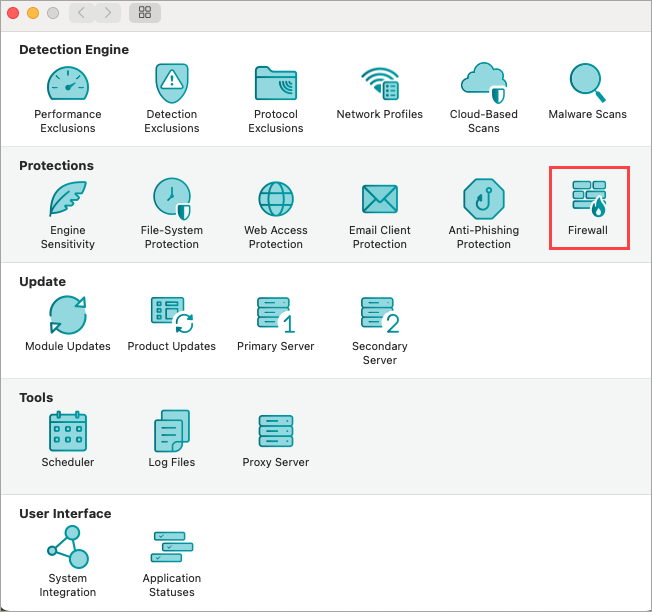

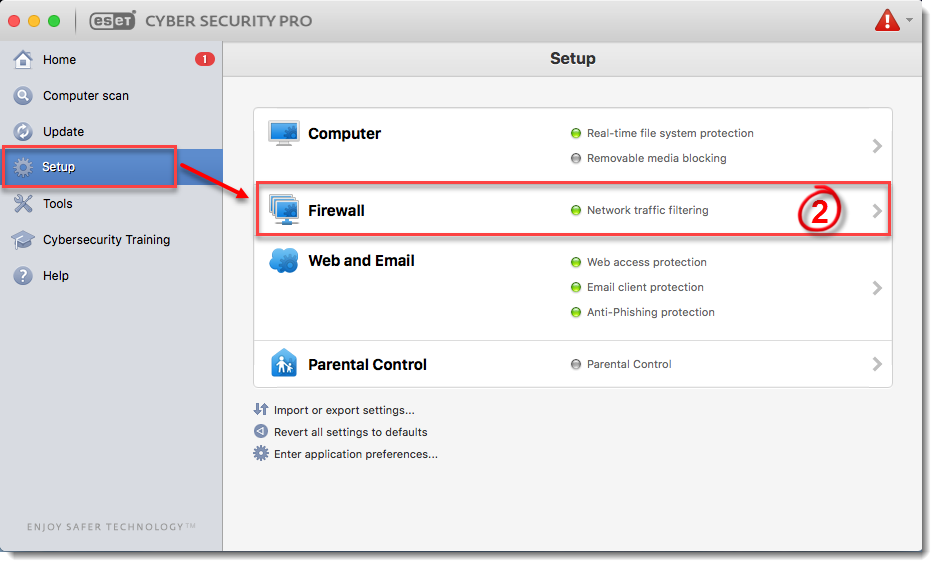

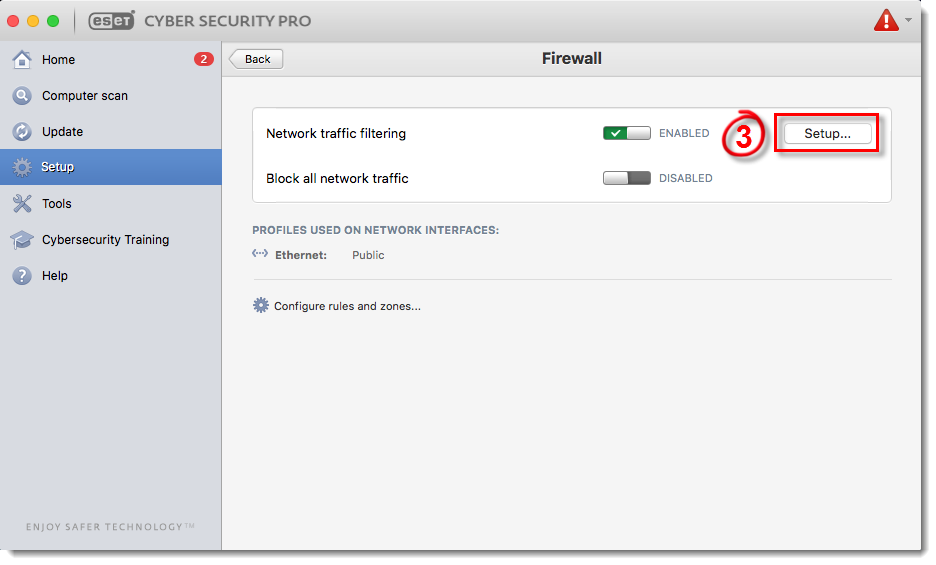

  2. ClickSetupFirewalland then clickSetup.

    Figure 1-1
    Click the image to view larger in new window

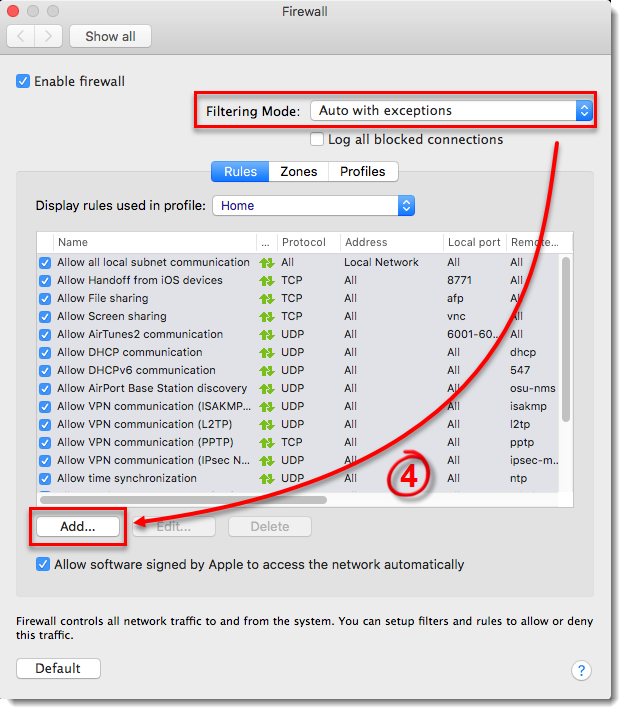

  3. Make sure thatAuto with exceptionsis selected from theFiltering Modedrop-down menu and clickAdd.

    Figure 1-2

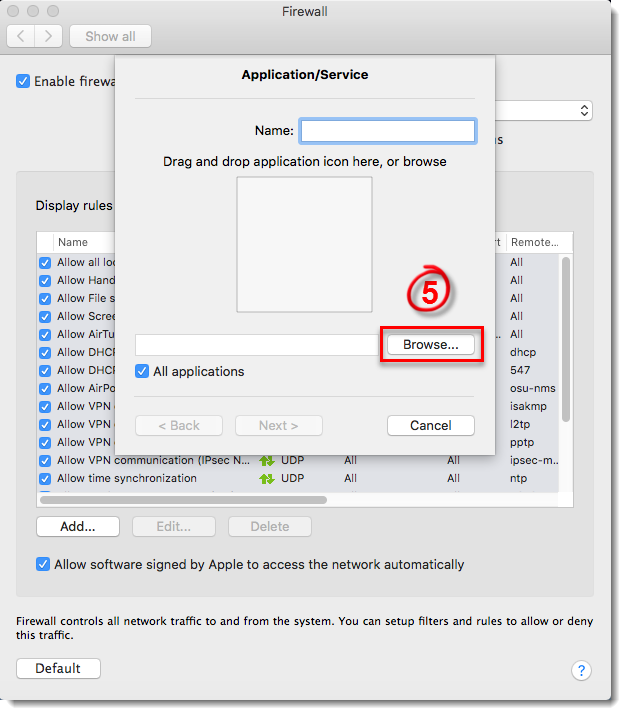

  4. ClickBrowse.

    Figure 1-3

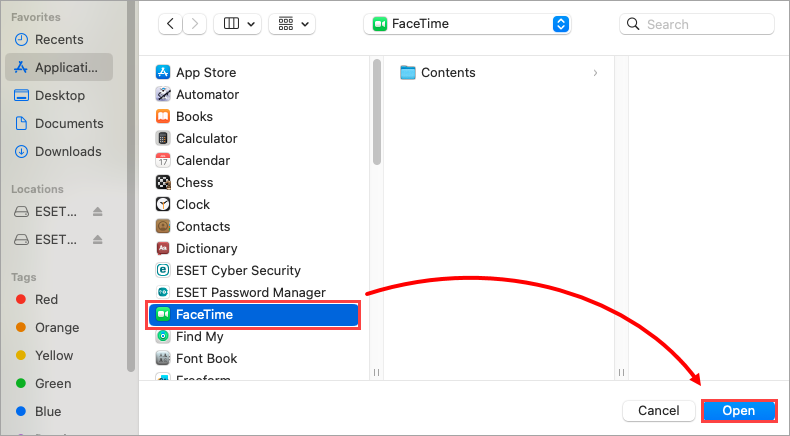

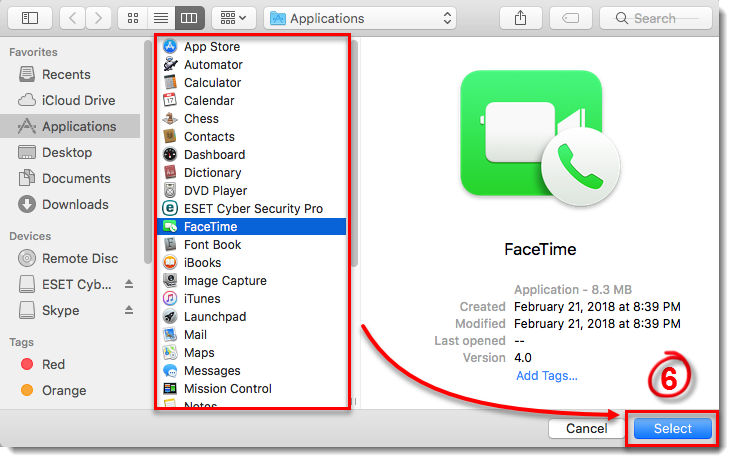

  5. Select the application that you want to create an exception for and then clickSelect.

    Figure 1-4
    Click the image to view larger in new window

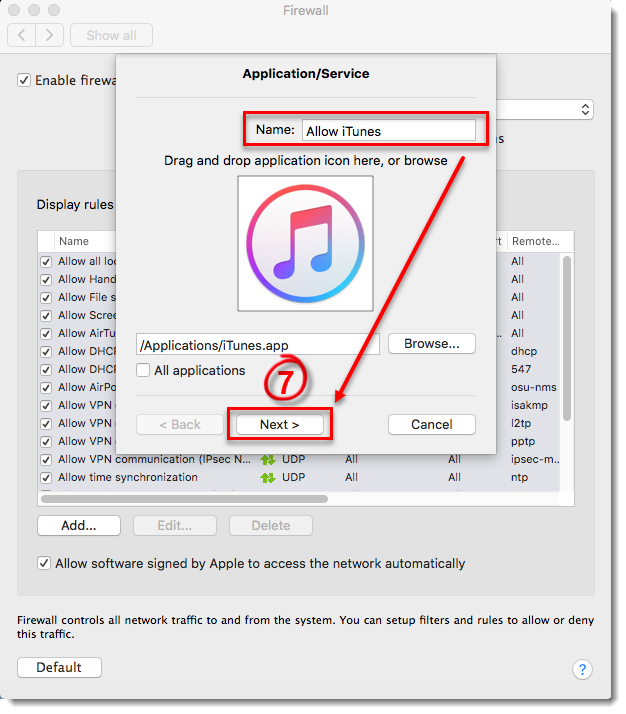

  6. Type a name for your new rule into theNamefield and clickNext.

    Figure 1-5

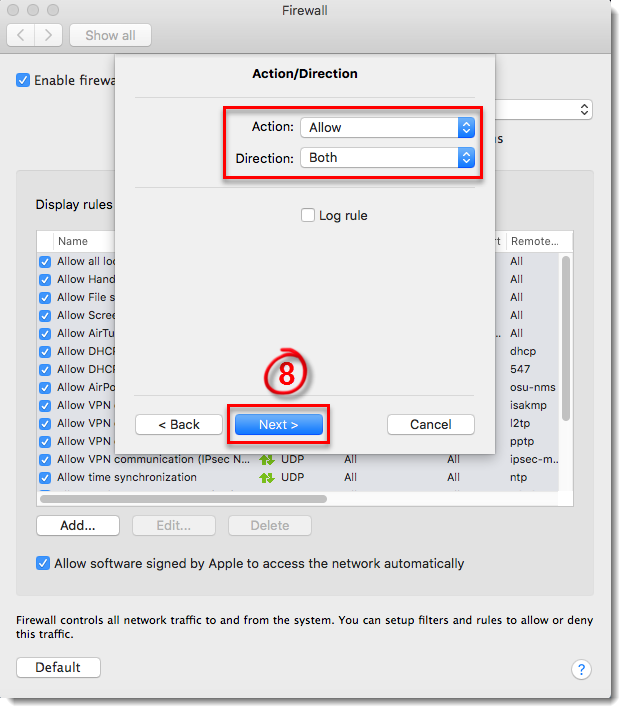

  7. SelectAllowfrom theActiondrop-down menu, selectBothfrom theDirectiondrop-down menu (you can also selectInorOutto create a rule that only allows incoming or outgoing communications) and clickNext.

    Figure 1-6

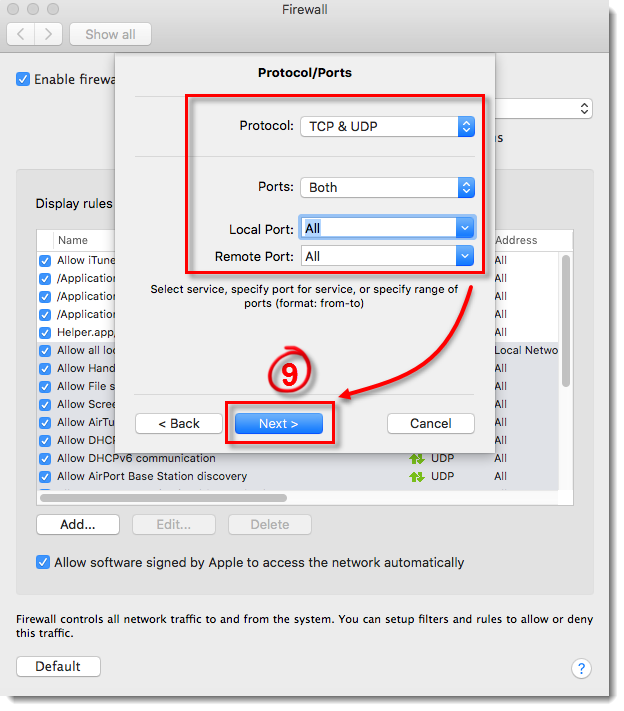

  8. Configure theProtocolandPortsettings. To create a rule to always allow the application, selectTCP & UDPfrom theProtocoldrop-down menu, selectBothfrom thePortsdrop-down menu and then selectAllfrom theLocal PortandRemotePortdrop-down menus. You can achieve more custom rules using different combinations of theProtocolandPortsettings. Once you are finished, clickNext.

    Figure 1-7

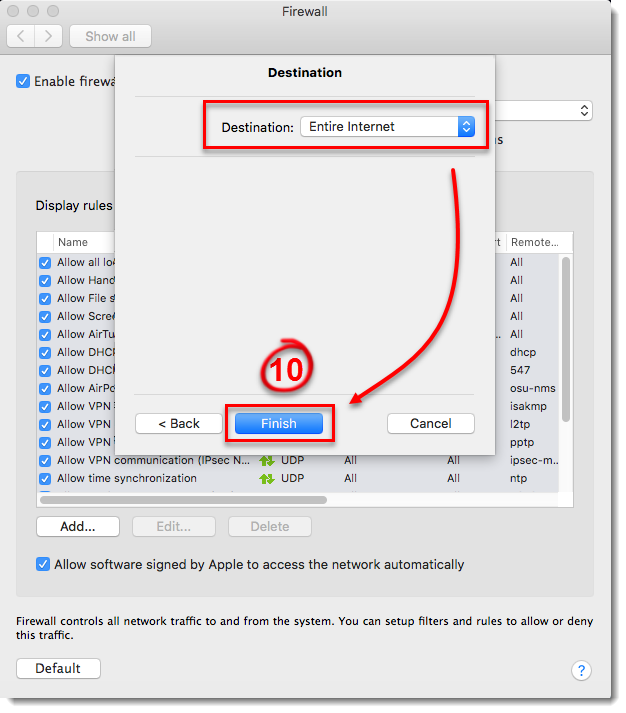

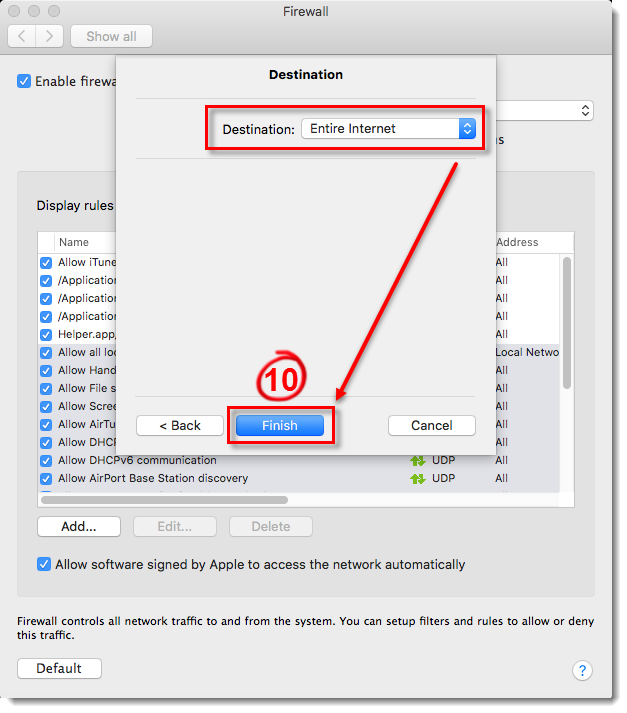

  9. In theDestinationwindowyou can define whether your rule applies for the entire Internet, for your local network, for a specific subnet or for a specific IP address or range of IP addresses. SelectEntire Internetto create a rule to always allow the application. ClickFinishwhen you are done making changes to create your new rule, and then close theFirewallwindow to return to the main program window.

    Figure 1-8

II.Create a rule to block an application

  1. Open ESET Cyber Security Pro.How do I open my ESET product?
  2. ClickSetupFirewalland then clickSetup.

    Figure 2-1
    Click the image to view larger in new window

  3. Make sure thatAuto with exceptionsis selected from theFiltering Modedrop-down menu and clickAdd.

    Figure 2-2

  4. ClickBrowse.

    Figure 2-3

  5. Select the application that you want to create an exception for and then clickSelect.

    Figure 2-4
    Click the image to view larger in new window

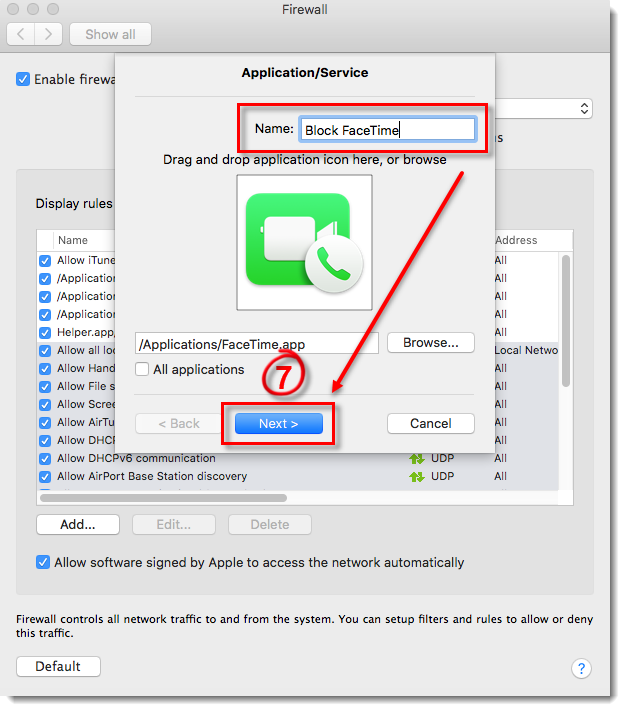

  6. Type a name for your new rule into theNamefield and clickNext.

    Figure 2-5

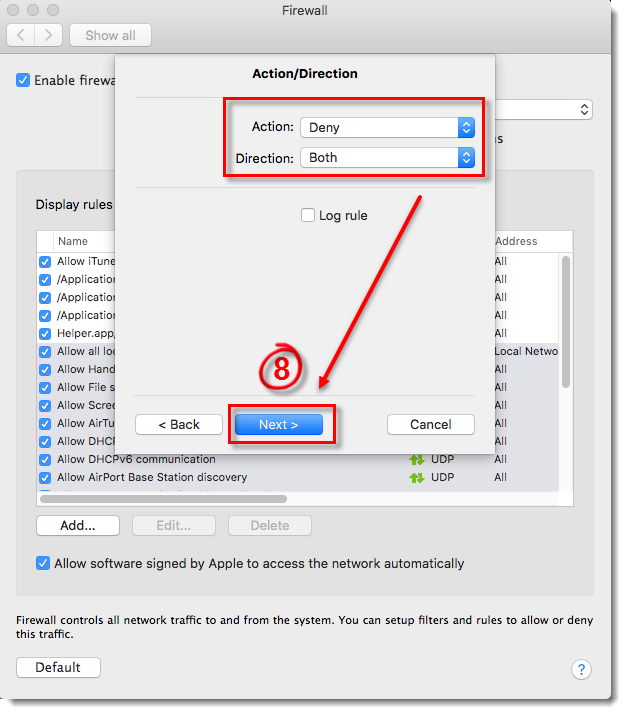

  7. SelectDenyfrom theActiondrop-down menu, selectBothfrom theDirectiondrop-down menu (you can also selectInorOutto create a rule that only blocks incoming or outgoing communications) and clickNext.

    Figure 2-6

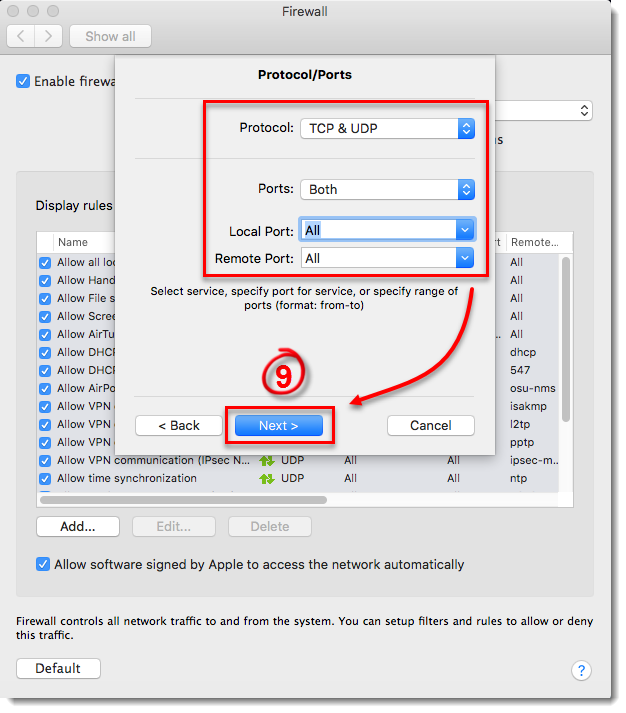

  8. Configure theProtocolandPortsettings. To create a rule to always block the application, selectTCP & UDPfrom theProtocoldrop-down menu, selectBothfrom thePortsdrop-down menu and then selectAllfrom theLocal PortandRemotePortdrop-down menus. You can achieve more custom rules using different combinations of theProtocolandPortsettings. Once you are finished, clickNext.

    Figure 2-7

  9. In theDestinationwindowyou can define whether your rule applies for the entire Internet, for your local network, for a specific subnet or for a specific IP address or range of IP addresses. SelectEntire Internetto create a rule to always allow the application. ClickFinishwhen you are done making changes to create your new rule, and then close theFirewallwindow to return to the main program window.

    Figure 2-8
    KB Solution ID: SOLN3275|Last Revised: March 19, 2014
